Compressor

Viper — Refrigeration System

1. Compressor

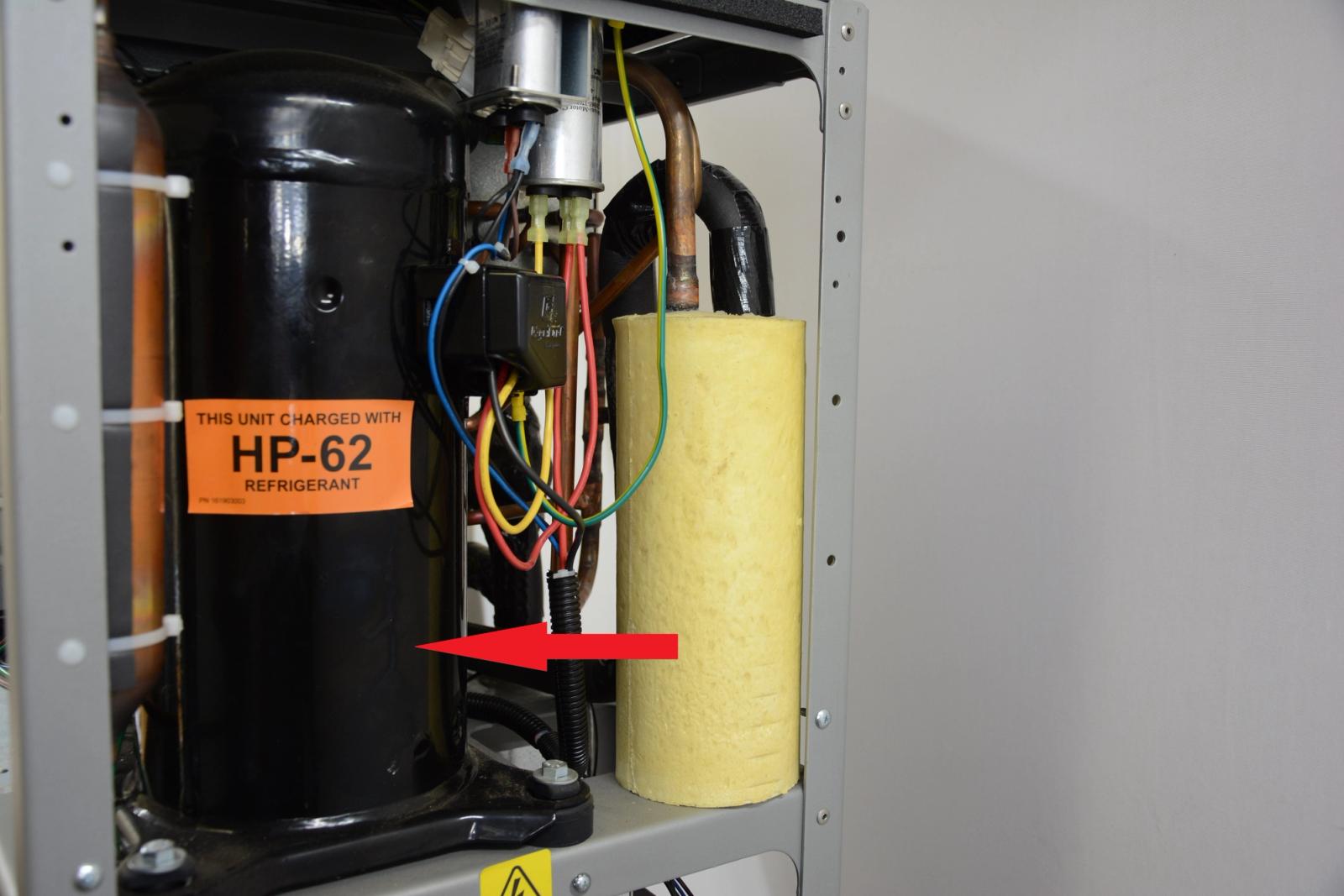

   The Viper Elite refrigeration system uses a high capacity Scroll compressors by Copeland.

   2 barrel - Copeland ZB15

   -Rated at 15,000 btu's

   -Common to Run = 1.2 ohms

   -Common to Start = 2.4 ohms

   -Start to Run = 3.6 ohms

   3 & 4 barrel - Copeland ZB19

   -Rated at 19,000 btu's

   -Common to Run = 1.2 ohms

   -Common to Start = 3.1 ohms

   -Start to Run = 3.9 ohms

   2 barrel – Copeland ZS15

   -Rated at 15,000 btu's

   -Common to Run = 1.2 ohms

   -Common to Start = 1.8 ohms

   -Start to Run = 2.9 ohms

   3 & 4 barrel – Copeland ZS19

   -Rated at 19,000 btu's

   -Common to Run = 1.1 ohms

   -Common to Start = 1.5 ohms

   -Start to Run = 2.6 ohms

   NOTE: Starting with 62E2022VP001 production changed from Copeland ZB to Copeland ZS model compressors.

   Note: ZB model compressors are rated for units manufactured with 404a refrigerant. ZS model compressors are rated for units manufactured with either 404a or 448a refrigerant.

   Note: Only use factory replacement compressor unit was manufactured with.

   Note: Observe the refrigerant type and amount noted on unit nameplate.
