Remote Condenser
Viper — Installation
-

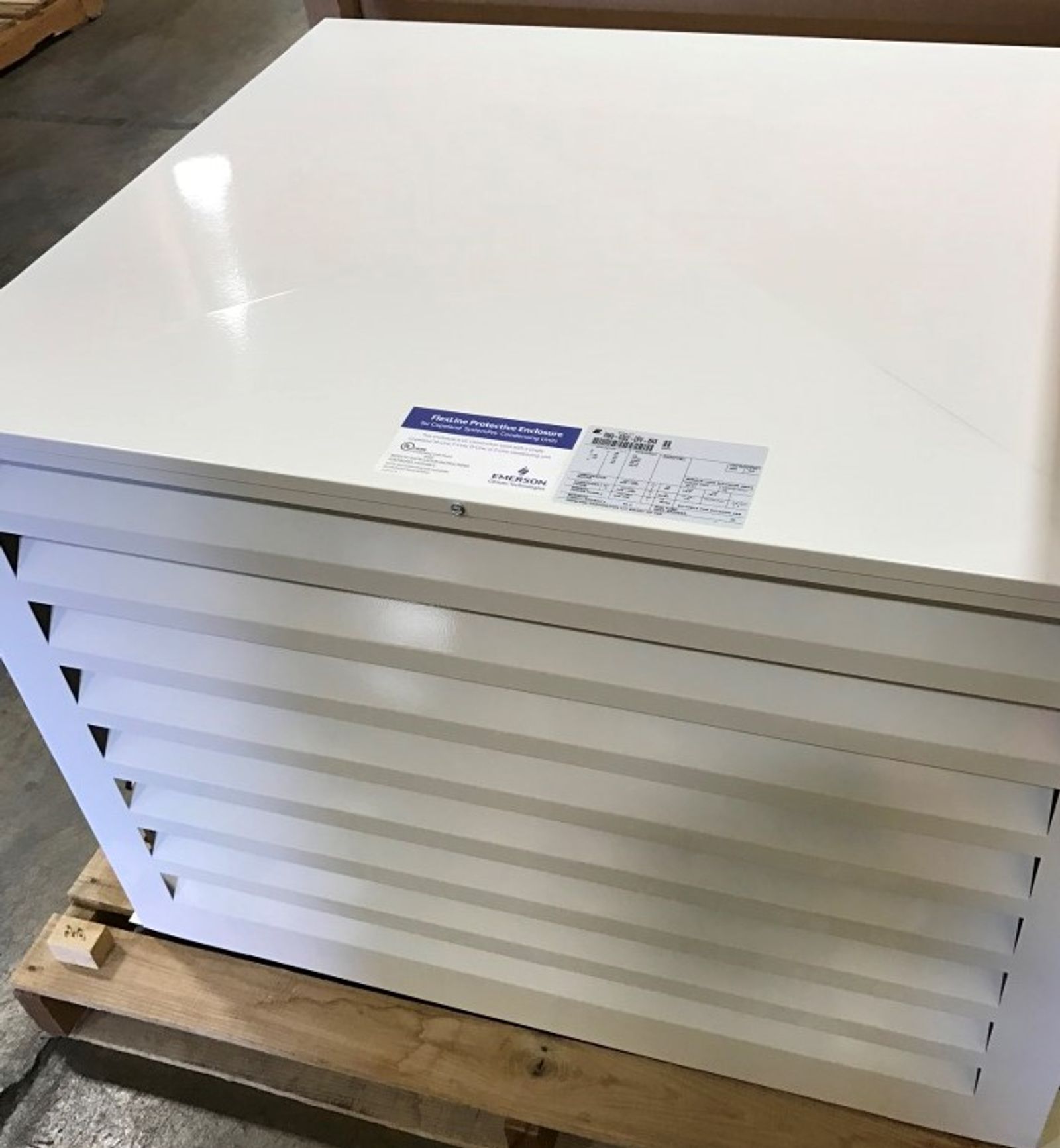

Procedure
Installation of the remote condenser will require proper refrigeration line routing, a separate individual electrical service for the remote condenser and low voltage signal wiring between the remote condenser and the Viper unit. Also required will be the use of the calculation formula and chart found in the installation manual to determine the proper refrigeration charge for the system. The charge is based on the Rise, Drop and Run lengths of the line set.
Note: Click to view the Viper remote installation instruction manual 629097916INS for complete details.
-

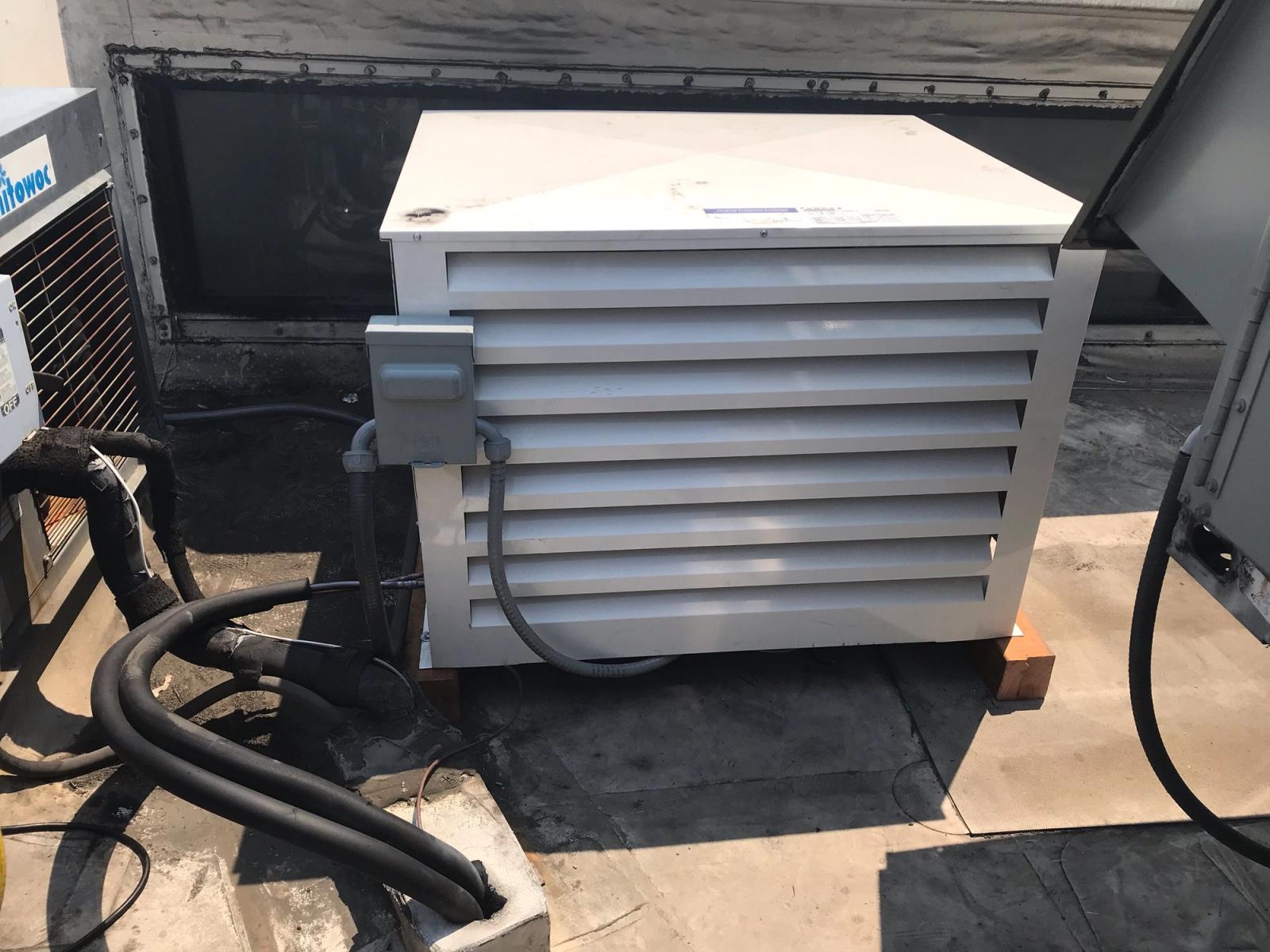

Components
For the proper installation of a Viper Remote unit, four items will need to be ordered from Marmon Foodservice Technologies. The items are the Viper remote version unit, mating remote condenser, installation kit and the refrigeration line set. Additional items that will need to be sourced locally include mounting hardware for the condenser, construction material for roof penetration, brazing supplies/tools, electrical wiring/conduit & connectors and the required amount of 404a refrigerant for the remote model Viper (3 or 4 flavor) being installed.
Note: Click to view the Viper remote installation instruction manual 629097916INS for complete details.
-

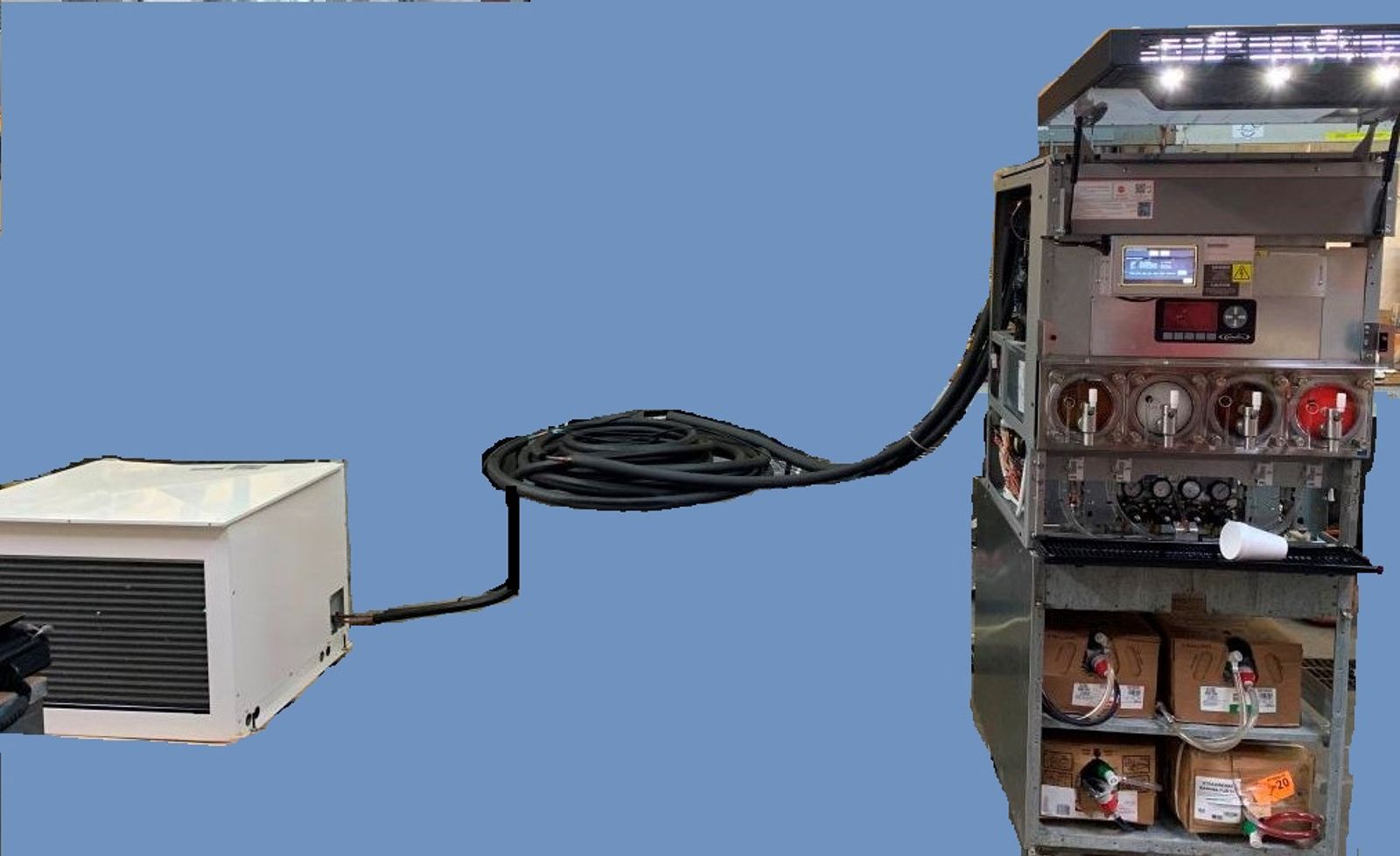

Location
Select the best available location, protecting the remote condenser from extremes of dirt, dust and sun. Also meet all applicable building codes using methods and practices to local building codes to mount and secure the remote condenser.
Note: Click to view the Viper remote installation instruction manual 629097916INS for complete details.
